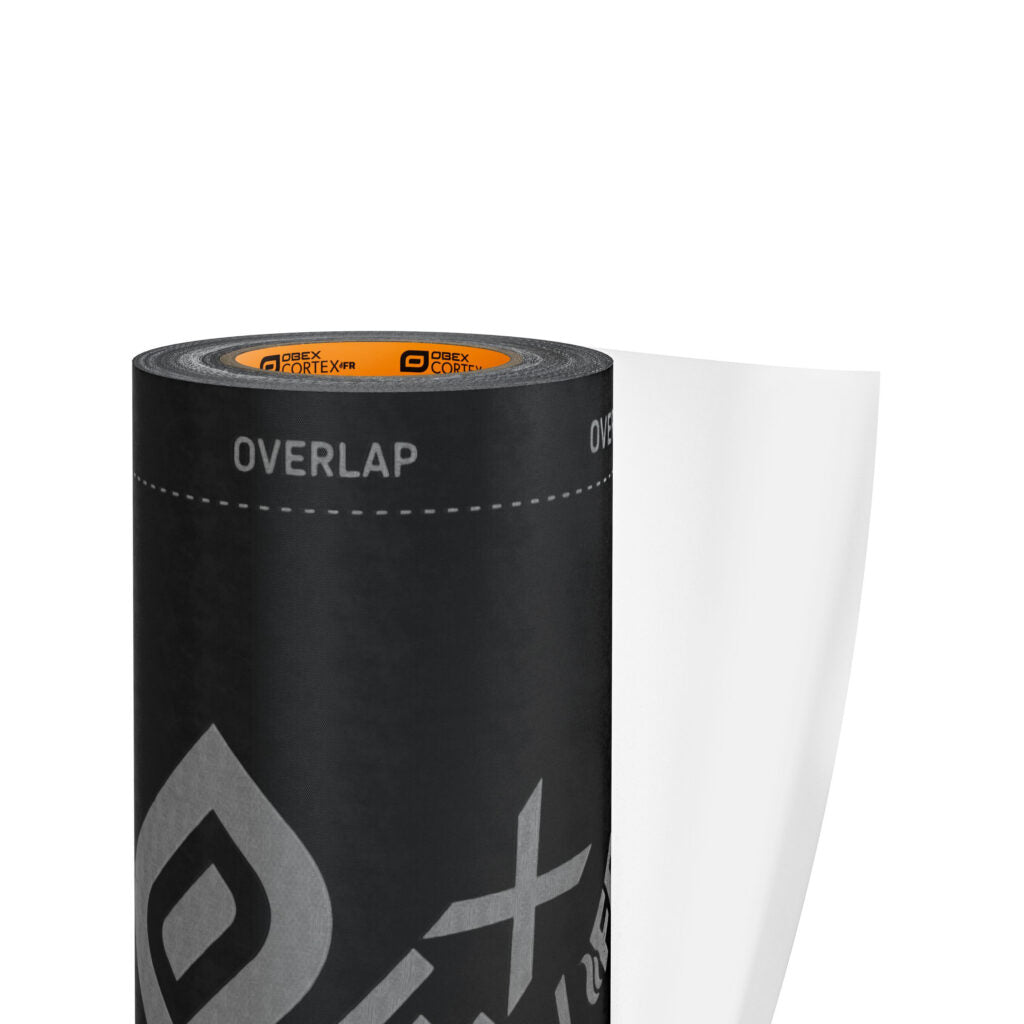

OBEX CORTEX 0521FR Self-Adhesive Breather Membrane - Class B-s1,d0
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Returning an Item
Returning an Item
If you're not completely satisfied with your purchase, you can request a return by completing our Returns Request Form. Our team will review your request and get back to you with the next steps.
Save More with Bulk Orders
Shop Here
Certified & Compliant Products
Shop
Committed to Sustainability
Delivering compliant fire protection and construction solutions with a reduced environmental impact.
Build Stronger Business Partnerships with FPDL Supplies
Join our Trade Program to access exclusive pricing and bulk order benefits.
Description
Description
The OBEX CORTEX 0521FR Self-Adhesive Breather Membrane - Class B-s1,d0 is a fire-classified, self-adhesive breather membrane for external wall and facade applications, combining a self-adhesive backing with a breathable, airtight layer.
WHERE IT'S USED
Applied directly to sheathing board on external facades to prevent water ingress while allowing vapour to escape. Also available in plain black finish for use behind open rainscreen cladding.
BUILD-UP
A self-adhesive membrane conforming to EN 13859-2, with a split release liner for faster installation, available in 1500mm or 370mm widths, 25m length, black (OBEX branded) or plain black finish.
KEY BENEFITS
- Class B-s1,d0 fire classification, independent of substrate (Regulation 7 compliant)
- W1 watertightness to EN 1928
- 6 months UV resistance for flexible project scheduling
- KIWA BDA third-party approved
- 20 year warranty
- Split release liner for faster installation
SPECIFICATION DATA
Fire classification: B-s1,d0 (EN 13501-1)
Standard: EN 13859-2
Width: 1500mm or 370mm
Length: 25m
Thickness: 0.38mm
Watertightness: W1 (EN 1928)
Sd value: 0.1m (EN ISO 12572)
Tensile strength: Longitudinal 255N/50mm, Transverse 180N/50mm (EN 12311-2)
UV resistance: 6 months
Passive House rating: A
Certification: KIWA Approval
Warranty: 20 years
