Description
Description
60 mm Wall System provides a single layer EI60:E90 fire-rated compartmentation wall that can be installed free-standing or within timber or plasterboard applications.
USE AREAS

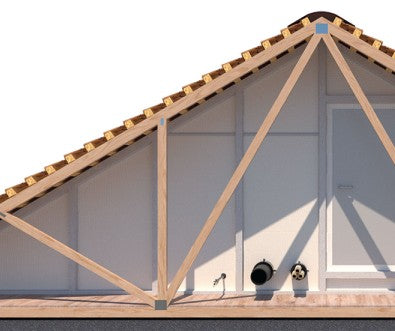

TheFIREFLYFB180 Ablative Batt Wall System can be installed as a non-load bearing compartmentation wall into restricted areas such as lofts and roof voids
It can be friction-fitted into typical existing supporting timber frames and also used within a double layer plasterboard wall
In all instances, whether free-standing or working with existing timber/plasterboard structures, the FB180 60 mm Batt Wall System provides an upgraded 90 minutes Integrity & 60 minutes Insulation
PENETRATIONS
FIREFLYFB180 Ablative Batt Wall System is tested with expected penetrations including theFIREFLYAccess Panel. See Installation Drawings/Manual for full details.
A complementaryFIREFLYFB180 Ablative Batt 60 mm Floor System is also available
- Single layer 60 mm batt installation provides 90 minutes Integrity & 60 minutes Insulation
- Fully tested to BS EN 1364-1 2015 and BS EN 1366-3:2021 to also include penetrations and access panels
- Can be used to create a stand-alone non-load bearing wall, built from one side in restricted access areas to create compartmentations
- Tested for use with timber where it can be friction fitted between standard (min. 90 x 38 mm C16 softwood) studs/joists which must be treated with FIREFLY Ablative Coating
- Also tested for use between 2 layers of plasterboard to increase fire-rating of standard construction to EI60:E90
- Suitable and tested for use in conjunction with FIREFLY flexible barriers and FIREFLY FR120 Access Panel
- Ease of installation with standard batt tools and friction fitting additional tracking not required to be used and FIREFLY fixings and Acrylic Sealant also available as part of the tested system
- Acoustic reduction of 27 d B from batt in isolation
- Fully supported with detailed drawings and installation instructions available online to clarify areas such as handling specific penetrations
- Meets requirements of BS EN 1364-1:2015 and provides a tested & certified solution as part of a FIREFLY system
