Description
Description

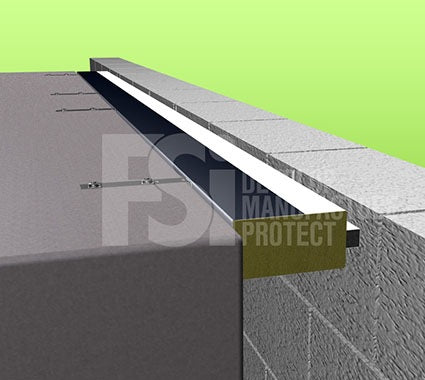

This has been developed to protect the voids between the outer rainscreen cladding / facade and the inner construction element
of the building.
Choice of Ventilated or Non Ventilated
Includes Brackets
Dimensions 75 mm thickness x 1000 mm long
Width 100 mm - 200 mm
Made to order so please allow 10-14 days for delivery.
The advantages of the Silverliner Cavity Barrier are as follows:
Fire Resistant testing to BS 476 - 60 & 120 mins.
Air Permeability testing to EN 1026 to 600Pa.
Acoustic Isolation testing to EN 10140 to 39 d B (non ventilated).
Suitable to close up to 25 mm ventilationgap (50 mm gap is available).
Voids up to 450 mm wide.
Dynamic movement testing 500 cycles per 30 minutes (non ventilated).
Available in Pre-Cut Sections for ease of application with minimum waste to suit void size.
Superior Level of Sustainability.
Encased Fibre Migration for Air Plenium Use.
Free of halogens, asbestos, fibres and silica and is non toxic.
Brackets included in the pack.
Life expectancy of over 25 years.
Contributes to Green Building.
Softer feel, Odourless and Easy to Cut.
Light Weight.
Silverliner Cavity Barrier - Ventilated
This Cavity Barrier comprises of a structural stone wool with aluminium foil on the surrounding faces, with a integral intumescent strip bonded to
the one of the outer faces wrapped to ensure the intumescent isn't effected by moisture. In the event of a fire the intumescent will react to the
exposure to heat and rapidly expand to fill the air gap originally left in the void.
Silverliner Cavity Barrier - Non - Ventilated
This Cavity Barrier just like the above on comprises of a structural stone wool with alluminium foil on the surrounding faces, however where the intumescent strip is bonded there now is a elastromeric flexible intumescent strip bonded that will accommodate or the movement of the building. The Elastromeric intumescent is then encased to prevent moisture ingress. In the event of a fire the intumescent will react to the exposure to heat and rapidly expand solidifythe gap filled by the elastromeric intumescent.
Made to order so please allow 10-14 days for delivery.
Please read data sheet for more informationon this product.
