Description
Description

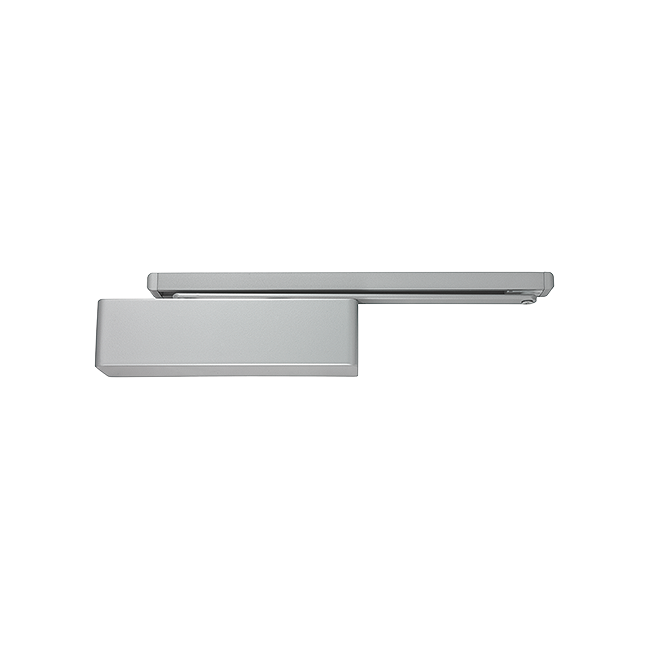

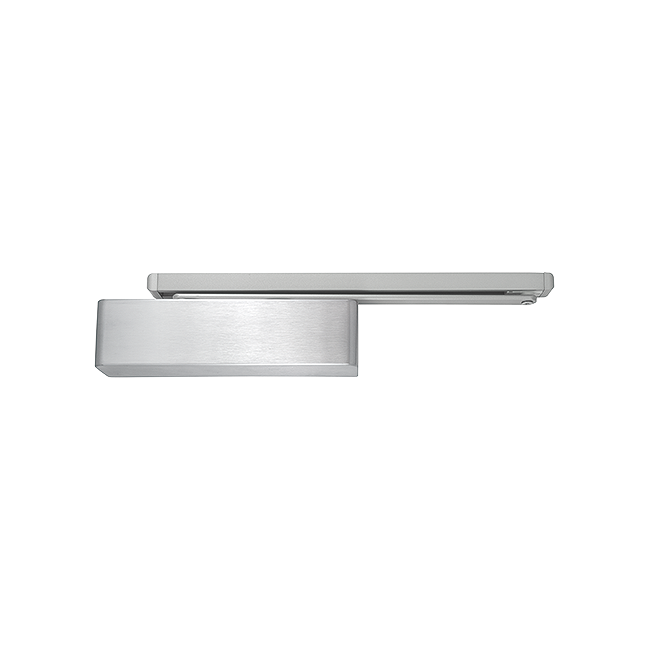

The Hoppe ARRONE AR6409B-L AR6409 Cam Action Slide Arm Size 2-4 is a Hoppe ARRONE overhead door closing device. Finished in Silver Enamel.
WHERE IT'S USED
CE marked (AD5284, UKCA Marked: AD7689). Certifire approved: CF5430, CE DOP: HUK0065, UKCA DOP: HUK0065-UK. Maximum Door Width: 1100 mm. Maximum Door Weight: 80 kg. Door Type: Wooden Door.
BUILD-UP
Constructed from Slimline Cover, Silver Enamel, AR6000 Door Closer. Fixings: Timber Door.
KEY BENEFITS
- CE marked (AD5284, UKCA Marked: AD7689).
- Certifire approved: CF5430, CE DOP: HUK0065, UKCA DOP: HUK0065-UK.
SPECIFICATION DATA
Power Size: 2 to 4
Function: Closing, Latching, Backcheck
Cover: Slimline Cover
Maximum Door Width: 1100 mm
Maximum Door Weight: 80 kg
Arm Application: Door Mount Pull, Transom Mount Push
Door mount pull side: 4 | 8 | 4/2 | 1* | 1 | 3
Transom mount push side: 3 | 8 | 4/2 | 1* | 1 | 3
CE Marked: AD5284, UKCA Marked: AD7689
Certifire Approved: CF5430, CE DOP: HUK0065, UKCA DOP: HUK0065-UK
Arm Type: Surface Slide Arm
Mechanism Dimensions And Fixing Centres: 240x56x43mm; Centres 100x41mm
Finish Of The Cover: Silver Enamel
Fixings: Timber Door
Mechanism Function: Backcheck, Adjustable Power, Closing/Latching Speed
Opening Angle: Max. 180° Opening
Slide Track Application: Door Mount Pull, Transom Mount Push
Finish: Silver Enamel
Commodity Class: AR6000 Door Closer
Mechanism Type: Cam Action
Shape: Slimline
Door Type: Wooden Door
